GrowingGraphNetwork tutorial#

A step-by-step guide to neural network growing on a directed acyclic graph (DAG) using the GroMo (Growing Modules) library.

What is GrowingGraphNetwork?#

While GrowingMLP grows neurons inside a fixed sequence of layers, GrowingGraphNetwork operates on a DAG topology where:

Nodes are merge modules that receive one or more incoming activations.
Edges are linear (or convolutional) layers connecting nodes.
New edges can be inserted between any pair of nodes, giving the network the freedom to grow its connectivity as well as its width.

Tutorial Overview#

In this tutorial, we will:

Set up the environment and data loaders
Define a GraphModel wrapping GrowingGraphNetwork
Implement the growth procedure: bottleneck detection, action selection, candidate evaluation, and weight application
Iteratively train and grow the DAG network

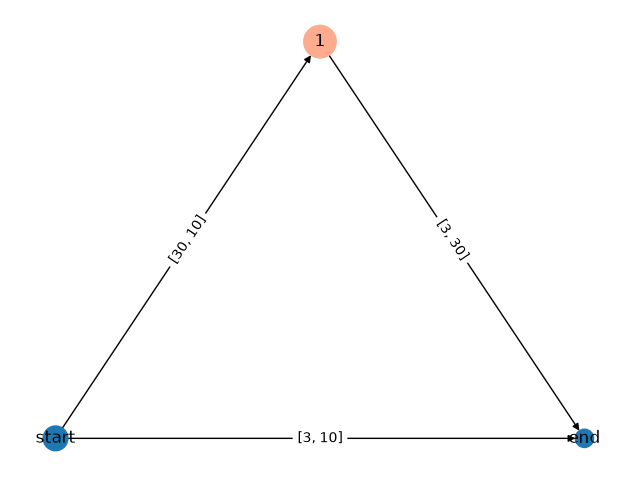

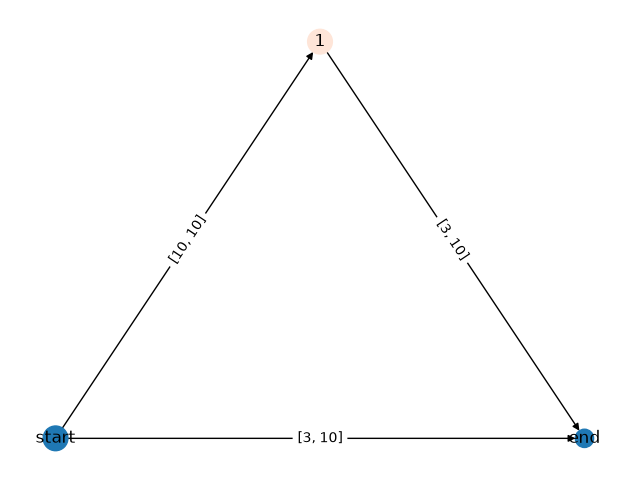

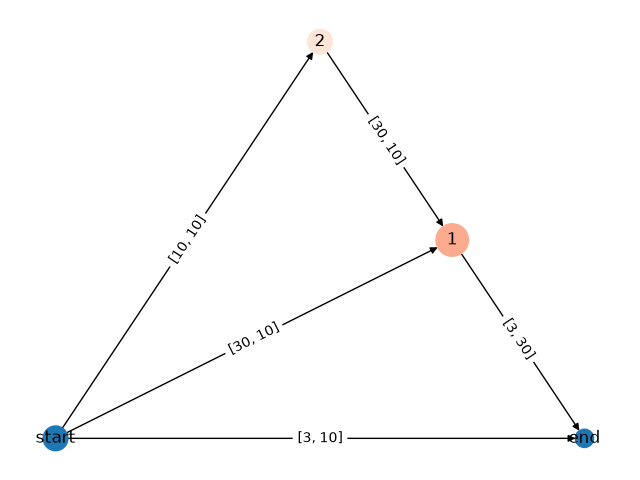

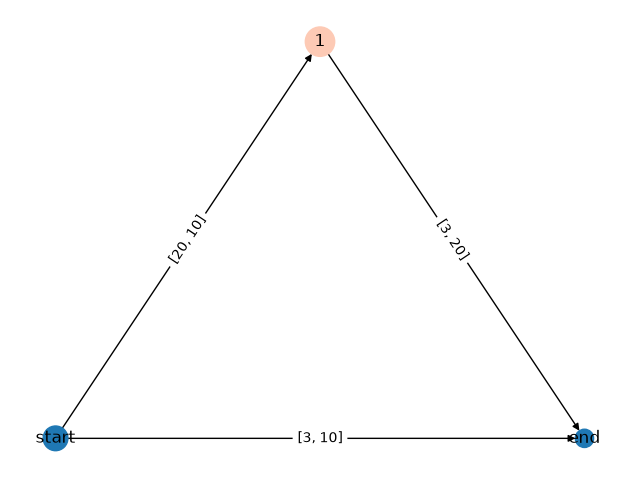

Inspect the evolving DAG topology

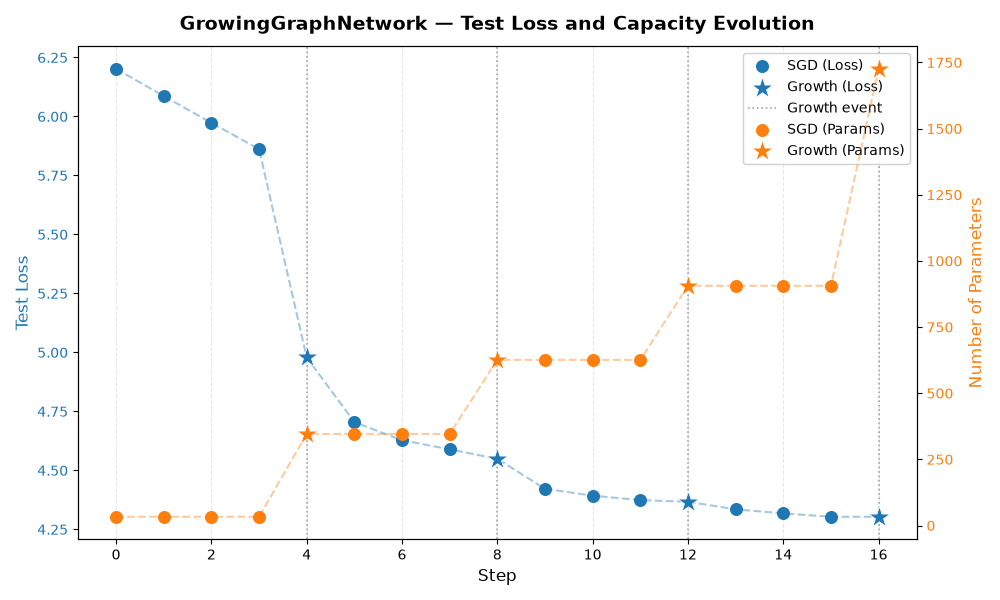

Visualise the evolution of loss and model capacity

Let’s get started!

Step 1: Environment Setup and Imports#

First, we import the necessary libraries:

import math
import operator
import random

import matplotlib.cm as mpl_cm
import matplotlib.colors as mpl_colors
import matplotlib.pyplot as plt
import networkx as nx
import torch
import torch.utils.data
from helpers.synthetic_data import MultiSinDataloader

from gromo.containers.growing_container import GrowingContainer
from gromo.containers.growing_dag import GrowingDAG
from gromo.containers.growing_graph_network import GrowingGraphNetwork
from gromo.modules.growing_module import MergeGrowingModule
from gromo.utils.training_utils import evaluate_model, gradient_descent


device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")

Using device: cpu

Step 2: Define the data loaders#

We use a custom dataloader with synthetic data for training, validation, and testing.

The input \(x \sim \mathcal{N}(0_k, 1_k)\) and the target is defined as:

\[y[d] = \sum_{i=1}^{k} \sin(i x[i] + d)\]

We need a validation set in addition to train / test because the growth procedure selects the best candidate action using held-out data (to avoid over-fitting to the training signal used for statistics accumulation).

in_features = 10
out_features = 3

train_data_loader = MultiSinDataloader(
    nb_sample=10,
    batch_size=1_000,
    in_features=in_features,
    out_features=out_features,
    seed=0,
    device=device,
)

val_data_loader = MultiSinDataloader(
    nb_sample=10,
    batch_size=500,
    in_features=in_features,
    out_features=out_features,
    seed=1,
    device=device,
)

test_data_loader = MultiSinDataloader(
    nb_sample=1,
    batch_size=1_000,
    in_features=in_features,
    out_features=out_features,
    seed=2,
    device=device,
)

Step 3: Define the GraphModel Architecture#

GraphModel is a thin wrapper around GrowingContainer that delegates all computation to an internal GrowingGraphNetwork (self.growing_dag).

Key design points#

GrowingGraphNetwork maintains a GrowingDAG internally. Nodes are merge modules; edges are linear layers.
We attach a torch.nn.SELU activation to the output merge node so that the network has non-linearity before the final projection.
set_growing_layers registers the DAG with the container so that the standard growth bookkeeping (statistics, deltas, …) propagates correctly.

Method	Description
`forward(x)`	Flatten input, pass through DAG
`extended_forward(x)`	Same as forward but also returns the “growth” output used during candidate evaluation
`set_growing_layers()`	Register `growing_dag` with the container

class GraphModel(GrowingContainer):
    def __init__(
        self,
        in_features: int,
        out_features: int,
        neurons: int,
        neuron_epochs: int,
        neuron_lrate: float,
        neuron_batch_size: int,
        loss_fn: torch.nn.Module,
        device: torch.device | str | None = None,
    ) -> None:
        super().__init__(in_features, out_features, device)

        self.growing_dag = GrowingGraphNetwork(
            in_features=in_features,
            out_features=out_features,
            neurons=neurons,
            neuron_epochs=neuron_epochs,
            neuron_lrate=neuron_lrate,
            neuron_batch_size=neuron_batch_size,
            loss_fn=loss_fn,
            layer_type="linear",
            name="dag",
        )

        # Attach a SELU activation to the output merge node so the final
        # representation is non-linear before the loss is computed.
        self.growing_dag.dag.get_node_module(
            self.growing_dag.dag.end
        ).post_merge_function = torch.nn.Sequential(
            torch.nn.SELU(),
        )

        self.set_growing_layers()

    def set_growing_layers(self) -> None:
        self._growing_layers.append(self.growing_dag)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        x = torch.flatten(x, 1)
        return self.growing_dag(x)

    def extended_forward(self, x: torch.Tensor, mask: dict = {}):
        x = torch.flatten(x, 1)
        return self.growing_dag.extended_forward(x, mask=mask)

Step 4: Helper Functions#

The graph growth procedure is more involved than the MLP case because we must decide where in the DAG to add capacity, not only how much.

Three helper functions handle the statistics and bottleneck logic:

update_computation() — runs one pass over the training set, accumulating pre-activity gradients and input activations for every node.
calculate_bottleneck() — for each node, computes a residual vector that measures how much of the gradient signal is not explained by the current edges. Nodes with a large residual norm are bottlenecks.
grow() — orchestrates the full growth step:
1. Enumerate candidate actions (possible new edges / expansions).
2. Accumulate statistics and compute optimal weight increments.
3. Identify the most important node via bottleneck norms.
4. Restrict the action space to that node and execute candidate expansions.
5. Line-search the best scaling factor on the training set, then rank candidates by validation loss.
6. Apply the winning action permanently.

def update_computation(
    model: GraphModel,
    dataloader: torch.utils.data.DataLoader,
    criterion: torch.nn.Module,
) -> tuple[dict[str, torch.Tensor], dict[str, torch.Tensor]]:
    """Run a forward-backward pass and collect per-node statistics.

    Parameters
    ----------
    model: GraphModel
        The graph model whose statistics buffers are already initialised.
    dataloader: torch.utils.data.DataLoader
        Training batches ``(X, Y)``.
    criterion: torch.nn.Module
        Loss function (must support ``reduction="mean"``).

    Returns
    -------
    tuple[dict[str, torch.Tensor], dict[str, torch.Tensor]]
        pre_activities_grad : dict[str, Tensor]
            Concatenated pre-activation gradients for every non-root node.
        inputs : dict[str, Tensor]
            Concatenated input activations for every node.
    """
    all_nodes = list(model.growing_dag.dag.nodes)
    root_key = model.growing_dag.dag.root

    pre_activities_grad = {
        node: [] for node in all_nodes if (node != root_key) and ("start" not in node)
    }
    inputs = {node: [] for node in all_nodes}

    for X, Y in dataloader:
        X, Y = X.to(model.device), Y.to(model.device)
        model.zero_grad()
        pred = model(X)
        loss = criterion(pred, Y)
        loss.backward()
        model.update_computation()

        # Accumulate per-node activations and pre-activity gradients on CPU to
        # avoid running out of GPU memory across batches.
        for node_module in set(model.growing_dag.dag.get_all_node_modules()):
            assert node_module.activity is not None

            activity = node_module.activity.clone().detach().cpu()
            inputs[node_module._name].append(activity)

            if node_module._name == root_key:
                continue
            assert node_module.pre_activity is not None
            assert node_module.pre_activity.grad is not None

            pre_activities_grad[node_module._name].append(
                node_module.pre_activity.grad.clone().detach().cpu()
            )

    pre_activities_grad = {
        k: torch.cat(v) if v else torch.empty(0) for k, v in pre_activities_grad.items()
    }
    inputs = {k: torch.cat(v) if v else torch.empty(0) for k, v in inputs.items()}
    return pre_activities_grad, inputs

For a node \(v\), the bottleneck vector is:

\[b_v = \nabla_{z_v} \mathcal{L} - \sum_{e \in \text{in}(v)} \Delta W_e^* \, a_{\text{src}(e)}\]

where \(\Delta W_e^*\) is the optimal weight increment for edge \(e\) computed by compute_optimal_delta(). A large \(\|b_v\|\) means that no currently proposed weight change can explain the gradient at \(v\), i.e. the node is a bottleneck.

def calculate_bottleneck(
    model: GraphModel,
    pre_activities_grad: dict,
    inputs: dict,
) -> dict[str, torch.Tensor]:
    """Compute the expressivity bottleneck for each node.

    Parameters
    ----------
    model: GraphModel
        Graph model after ``compute_optimal_delta()`` has been called.
    pre_activities_grad: dict
        saved gradient of the pre-activities of each node.
    inputs: dict
        saved input of each node.

    Returns
    -------
    bottleneck : dict[str, torch.Tensor]
        Residual gradient vector for each node.

    Raises
    ------
    KeyError
        if the activity gradient or the input of a node was not recorded
    """
    bottleneck = {}
    with torch.no_grad():
        for node_module in set(model.growing_dag.dag.get_all_node_modules()):
            if node_module._name == model.growing_dag.dag.root:
                continue

            if node_module._name not in pre_activities_grad:
                raise KeyError(f"Activity gradient {node_module._name} was not recorded")

            v_proj = pre_activities_grad[node_module._name]
            for module in node_module.previous_modules:
                prev_module = module.previous_module
                if prev_module._name not in inputs:
                    if isinstance(prev_module.previous_modules[0], MergeGrowingModule):
                        prev_module = prev_module.previous_modules[0]

                if prev_module._name not in inputs:
                    raise KeyError(f"Input activity {prev_module._name} was not recorded")

                input_activity = inputs[prev_module._name]
                v_proj = (
                    v_proj
                    - module.optimal_delta_layer(
                        input_activity.to(module.device)  # type: ignore
                    ).cpu()
                )

            bottleneck[node_module._name] = v_proj

    return bottleneck

def grow(
    model: GraphModel,
    train_dataloader: torch.utils.data.DataLoader,
    val_dataloader: torch.utils.data.DataLoader,
    criterion: torch.nn.Module,
) -> None:
    """Grow the graph model by one step.

    The procedure is:

    1. Enumerate candidate actions (possible new edges / node expansions).
    2. Run a forward-backward pass to accumulate statistics.
    3. Compute optimal weight increments (:math:`\\Delta W^* = S^{-1} M`).
    4. Identify the DAG node with the largest bottleneck norm.
    5. Restrict candidates to that node and execute their weight expansions.
    6. Line-search the scaling factor on the training set.
    7. Score candidates on the validation set and keep the best one.
    8. Apply the winning expansion permanently.

    Parameters
    ----------
    model: GraphModel
        The ``GraphModel`` to grow.
    train_dataloader: torch.utils.data.DataLoader
        Used for statistics accumulation and line search.
    val_dataloader: torch.utils.data.DataLoader
        Used for final candidate ranking to avoid over-fitting.
    criterion: torch.nn.Module
        Loss function (``reduction="mean"``).
    """
    # Enumerate what expansions are possible in the current DAG.
    actions = model.growing_dag.dag.define_next_actions(expand_end=True)

    model.init_computation()
    pre_activities_grad, inputs = update_computation(model, train_dataloader, criterion)

    # Solve for optimal weight increments for every candidate edge.
    model.compute_optimal_delta()
    bottleneck = calculate_bottleneck(model, pre_activities_grad, inputs)
    del pre_activities_grad

    model.reset_computation()

    # Select the DAG node whose bottleneck norm is largest — that is where
    # adding capacity will help the most.
    bott_norms = {
        key: torch.linalg.norm(val)
        for key, val in bottleneck.items()
        if key in model.growing_dag.dag.nodes
    }
    most_important_node = max(bott_norms.items(), key=operator.itemgetter(1))[0]
    print(
        f"Most important node: {most_important_node} "
        f"(bottleneck norm = {bott_norms[most_important_node]:.4f})"
    )

    # Keep only actions that target the selected node.
    actions = model.growing_dag.restrict_action_space(
        actions, chosen_outputs=[most_important_node]
    )

    # Instantiate the candidate weight extensions (not yet applied).
    model.growing_dag.execute_expansions(
        actions=actions,
        bottleneck=bottleneck,
        input_B=inputs,
        amplitude_factor=False,
        evaluate=False,
    )

    # For each candidate, find the best scaling factor via line search on the
    # training set, then record the validation loss for final ranking.
    for action in actions:
        print(f"Evaluating candidate: {action}")
        mask = action.create_mask()

        best_loss = float("inf")
        best_value = 0.0
        for value in [0.0, 0.05, 0.1, 0.5, 1.0]:
            model.set_scaling_factor(value)
            loss, _ = evaluate_model(
                model=model,
                dataloader=val_dataloader,
                loss_function=criterion,
                use_extended_model=True,
                mask=mask,
                device=device,
            )
            print(f"  scaling={value:.1f}  val_loss={loss:.4f}")
            if loss < best_loss:
                best_loss = loss
                best_value = value
        print(f"  => best scaling={best_value:.1f}  val_loss={best_loss:.4f}")

        model.set_scaling_factor(best_value)
        action.metrics["scaling_factor"] = best_value

        action.metrics["loss_val"] = best_loss

    # Pick the candidate with the lowest validation loss and apply it.
    model.growing_dag.choose_growth_best_action(actions)
    print(f"Chose option {model.growing_dag.chosen_action}")
    model.growing_dag.apply_change()

def plot_graph(dag: GrowingDAG) -> None:
    """Plot an explanatory version of the DAG

    Parameters
    ----------
    dag : GrowingDAG
        the growing dag
    """

    def size_to_color(size):
        cmap = mpl_cm.Reds  # type: ignore
        norm = mpl_colors.Normalize(vmin=0, vmax=100)
        rgba = cmap(norm(size))
        return mpl_colors.rgb2hex(rgba)

    pos = nx.planar_layout(dag)

    default_blue = "#1F78B4"
    colors = [
        size_to_color(dag.nodes[n]["size"])
        if n not in (dag.root, dag.end)
        else default_blue
        for n in dag.nodes
    ]
    sizes = [math.sqrt(dag.nodes[n]["size"]) * 100 for n in dag.nodes]
    labels = {n: n.split("@")[0] for n in dag.nodes}
    edge_labels = {
        (u, v): str(list(dag.get_edge_module(u, v).weight.shape)) for u, v in dag.edges
    }

    plt.figure()
    nx.draw(
        dag,
        pos,
        node_color=colors,
        node_size=sizes,
        labels=labels,
        with_labels=True,
        arrows=True,
    )
    nx.draw_networkx_edge_labels(dag, pos, edge_labels=edge_labels)
    plt.show()

Step 5: Create the Initial Model#

We initialise a GraphModel with:

Input size: 10 features
Output size: 3 targets
50 neurons per internal node (the DAG starts with a single hidden node)
A SELU activation on the output merge node

Setting fixed random seeds ensures reproducibility.

criterion = torch.nn.MSELoss()

torch.manual_seed(1)
random.seed(1)

model = GraphModel(
    in_features=in_features,
    out_features=out_features,
    neurons=10,
    neuron_epochs=100,
    neuron_lrate=1e-2,
    neuron_batch_size=256,
    loss_fn=criterion,
    device=device,
)

print("Initial model:")
print(model)

Initial model:
GraphModel(
  (growing_dag): GrowingGraphNetwork(
    (loss_fn): MSELoss()
    (dag): GrowingDAG[dag](
        Nodes (2):
                start@dag (layer type: linear, hidden size: 10, activation: None)
                end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
        Edges (1):
                start@dag->end@dag
    )
  )
)

Step 6: Training Loop with Growth#

We alternate between:

SGD training — standard gradient descent to optimise current weights.
Growing — the DAG identifies its bottleneck node and adds a new edge (or expands an existing node) to relieve it.

What to observe:

Each growth step may add a new edge between distant nodes, increasing both the connectivity and the parameter count.
The validation-based candidate ranking prevents the growth from over-fitting to the training statistics.
Test loss should decrease monotonically across growth steps.

We present the growth history:

Growth Step 1 — Maximum bottleneck node: end. Candidate actions increasing information throughput to node end: 1. create new node 1 from start to end.

Chose action (1).

Growth Step 2 — Maximum bottleneck node: 1. Candidate actions increasing information throughput to node 1: 1. create node 2 from start to 1, 2. add neurons to node 1.

Chose action (2).

Growth Step 3 — Maximum bottleneck node: 1. Candidate actions increasing information throughput to node 1: 1. create node 2 from start to 1, 2. add neurons to node 1.

Chose action (1).

Growth Step 4 — Maximum bottleneck node: 1. Candidate actions increasing information throughput to node 1: 1. create node 3 from 2 to 1, 2. add neurons to node 1, 3. add neurons to node 2.

Chose action (1).

Final DAG structure:

Nodes (5):
  start@dag (layer type: linear, hidden size: 10, activation: None)
  end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
  1@dag (layer type: linear, hidden size: 20, activation: [Identity(), SELU()])
  2@dag (layer type: linear, hidden size: 10, activation: [Identity(), SELU()])
  3@dag (layer type: linear, hidden size: 10, activation: [Identity(), SELU()])
Edges (7):
  start@dag->end@dag, start@dag->1@dag, start@dag->2@dag,
  1@dag->end@dag, 2@dag->1@dag, 2@dag->3@dag, 3@dag->1@dag

growth_steps = 4
intermediate_epochs = 3

# Data collection for plotting
history = {
    "step": [],
    "test_loss": [],
    "num_params": [],
    "step_type": [],  # "SGD" or "GRO"
}


def count_parameters(model: torch.nn.Module) -> int:
    """Count the number of trainable parameters in the model."""
    return sum(p.numel() for p in model.parameters() if p.requires_grad)


test_loss, _ = evaluate_model(model, test_data_loader, criterion, device=device)
last_test_loss = test_loss
print(f"[N/A] Step 0  Test Loss: {test_loss:.4f}")

history["step"].append(0)
history["test_loss"].append(test_loss)
history["num_params"].append(count_parameters(model))
history["step_type"].append("SGD")

for step in range(growth_steps):
    optimizer = torch.optim.SGD(model.parameters(), lr=0.01)

    # --- SGD phase ---
    for epoch in range(1, intermediate_epochs + 1):
        gradient_descent(
            model,
            train_data_loader,
            optimizer,
            scheduler=None,
            loss_function=criterion,
            device=device,
        )
        test_loss, _ = evaluate_model(
            model,
            test_data_loader,
            criterion,
            device=device,
        )
        current_step = epoch + step * (intermediate_epochs + 1)
        print(
            f"[SGD] Step {current_step}  "
            f"Test Loss: {test_loss:.4f} ({test_loss - last_test_loss:+.4f})"
        )
        last_test_loss = test_loss

        history["step"].append(current_step)
        history["test_loss"].append(test_loss)
        history["num_params"].append(count_parameters(model))
        history["step_type"].append("SGD")

    # --- Growth phase ---
    grow(model, train_data_loader, val_data_loader, criterion)
    print("Model after growing:")
    print(model)
    plot_graph(model.growing_dag.dag)

    test_loss, _ = evaluate_model(model, test_data_loader, criterion, device=device)
    current_step = (step + 1) * (intermediate_epochs + 1)
    print(
        f"[GRO] Step {current_step}  "
        f"Test Loss: {test_loss:.4f} ({test_loss - last_test_loss:+.4f})"
    )
    last_test_loss = test_loss

    history["step"].append(current_step)
    history["test_loss"].append(test_loss)
    history["num_params"].append(count_parameters(model))
    history["step_type"].append("GRO")

[N/A] Step 0  Test Loss: 6.2019
[SGD] Step 1  Test Loss: 6.0867 (-0.1152)
[SGD] Step 2  Test Loss: 5.9729 (-0.1138)
[SGD] Step 3  Test Loss: 5.8615 (-0.1114)
Most important node: end@dag (bottleneck norm = 0.2741)
/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/torch/nn/modules/linear.py:124: UserWarning: Initializing zero-element tensors is a no-op
  init.kaiming_uniform_(self.weight, a=math.sqrt(5))
Evaluating candidate: [Expansion]: New node 1@dag_a from start@dag to end@dag
  scaling=0.0  val_loss=5.7406
  scaling=0.1  val_loss=5.7340
  scaling=0.1  val_loss=5.7143
  scaling=0.5  val_loss=5.2592
  scaling=1.0  val_loss=4.9635
  => best scaling=1.0  val_loss=4.9635
Chose option [Expansion]: New node 1@dag_a from start@dag to end@dag
Model after growing:
GraphModel(
  (growing_dag): GrowingGraphNetwork(
    (loss_fn): MSELoss()
    (dag): GrowingDAG[dag](
        Nodes (3):
                start@dag (layer type: linear, hidden size: 10, activation: None)
                end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
                1@dag (layer type: linear, hidden size: 10, activation: [Identity(), SELU()])
        Edges (3):
                start@dag->end@dag, start@dag->1@dag, 1@dag->end@dag
    )
  )
)
[GRO] Step 4  Test Loss: 4.9788 (-0.8827)
[SGD] Step 5  Test Loss: 4.7048 (-0.2740)
[SGD] Step 6  Test Loss: 4.6279 (-0.0769)
[SGD] Step 7  Test Loss: 4.5893 (-0.0386)
Most important node: 1@dag (bottleneck norm = 0.5511)
Evaluating candidate: [Expansion]: New node 2@dag_a from start@dag to 1@dag
  scaling=0.0  val_loss=4.5190
  scaling=0.1  val_loss=4.5220
  scaling=0.1  val_loss=4.5298
  scaling=0.5  val_loss=4.7357
  scaling=1.0  val_loss=5.9583
  => best scaling=0.0  val_loss=4.5190
Evaluating candidate: [Expansion]: Expanding node 1@dag
  scaling=0.0  val_loss=4.5190
  scaling=0.1  val_loss=4.5199
  scaling=0.1  val_loss=4.5215
  scaling=0.5  val_loss=4.4830
  scaling=1.0  val_loss=4.4732
  => best scaling=1.0  val_loss=4.4732
Chose option [Expansion]: Expanding node 1@dag
Model after growing:
GraphModel(
  (growing_dag): GrowingGraphNetwork(
    (loss_fn): MSELoss()
    (dag): GrowingDAG[dag](
        Nodes (3):
                start@dag (layer type: linear, hidden size: 10, activation: None)
                end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
                1@dag (layer type: linear, hidden size: 20, activation: [Identity(), SELU()])
        Edges (3):
                start@dag->end@dag, start@dag->1@dag, 1@dag->end@dag
    )
  )
)
[GRO] Step 8  Test Loss: 4.5489 (-0.0404)
[SGD] Step 9  Test Loss: 4.4220 (-0.1269)
[SGD] Step 10  Test Loss: 4.3929 (-0.0291)
[SGD] Step 11  Test Loss: 4.3740 (-0.0189)
Most important node: 1@dag (bottleneck norm = 0.7579)
Evaluating candidate: [Expansion]: New node 2@dag_a from start@dag to 1@dag
  scaling=0.0  val_loss=4.2793
  scaling=0.1  val_loss=4.2870
  scaling=0.1  val_loss=4.3161
  scaling=0.5  val_loss=5.8052
  scaling=1.0  val_loss=22.2485
  => best scaling=0.0  val_loss=4.2793
Evaluating candidate: [Expansion]: Expanding node 1@dag
  scaling=0.0  val_loss=4.2793
  scaling=0.1  val_loss=4.2794
  scaling=0.1  val_loss=4.2791
  scaling=0.5  val_loss=4.2601
  scaling=1.0  val_loss=5.4412
  => best scaling=0.5  val_loss=4.2601
Chose option [Expansion]: Expanding node 1@dag
Model after growing:
GraphModel(
  (growing_dag): GrowingGraphNetwork(
    (loss_fn): MSELoss()
    (dag): GrowingDAG[dag](
        Nodes (3):
                start@dag (layer type: linear, hidden size: 10, activation: None)
                end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
                1@dag (layer type: linear, hidden size: 30, activation: [Identity(), SELU()])
        Edges (3):
                start@dag->end@dag, start@dag->1@dag, 1@dag->end@dag
    )
  )
)
[GRO] Step 12  Test Loss: 4.3670 (-0.0070)
[SGD] Step 13  Test Loss: 4.3349 (-0.0321)
[SGD] Step 14  Test Loss: 4.3177 (-0.0173)
[SGD] Step 15  Test Loss: 4.3034 (-0.0142)
Most important node: 1@dag (bottleneck norm = 0.8209)
Evaluating candidate: [Expansion]: New node 2@dag_a from start@dag to 1@dag
  scaling=0.0  val_loss=4.2009
  scaling=0.1  val_loss=4.2039
  scaling=0.1  val_loss=4.2100
  scaling=0.5  val_loss=5.5012
  scaling=1.0  val_loss=20.8079
  => best scaling=0.0  val_loss=4.2009
Evaluating candidate: [Expansion]: Expanding node 1@dag
  scaling=0.0  val_loss=4.2009
  scaling=0.1  val_loss=4.2016
  scaling=0.1  val_loss=4.2030
  scaling=0.5  val_loss=4.2409
  scaling=1.0  val_loss=5.4028
  => best scaling=0.0  val_loss=4.2009
Chose option [Expansion]: New node 2@dag_a from start@dag to 1@dag
/home/runner/work/gromo/gromo/src/gromo/modules/growing_module.py:2147: UserWarning: input_extension_scaling is null. The input extension will have no effect.
  warnings.warn(
Model after growing:
GraphModel(
  (growing_dag): GrowingGraphNetwork(
    (loss_fn): MSELoss()
    (dag): GrowingDAG[dag](
        Nodes (4):
                start@dag (layer type: linear, hidden size: 10, activation: None)
                end@dag (layer type: linear, hidden size: 3, activation: [SELU()])
                1@dag (layer type: linear, hidden size: 30, activation: [Identity(), SELU()])
                2@dag (layer type: linear, hidden size: 10, activation: [Identity(), SELU()])
        Edges (5):
                start@dag->end@dag, start@dag->1@dag, start@dag->2@dag, 1@dag->end@dag, 2@dag->1@dag
    )
  )
)
[GRO] Step 16  Test Loss: 4.3034 (+0.0000)

Step 7: Visualise Training Progress#

The figure below tracks two quantities across training steps:

Test loss (left y-axis, blue): how well the model generalises.
Number of parameters (right y-axis, orange): model capacity.

Vertical dotted lines mark each growth event. Circles (●) denote SGD steps; stars (★) denote growth steps.

fig, ax1 = plt.subplots(figsize=(10, 6))

sgd_indices = [i for i, t in enumerate(history["step_type"]) if t == "SGD"]
gro_indices = [i for i, t in enumerate(history["step_type"]) if t == "GRO"]

# --- Left y-axis: Test Loss ---
ax1.set_xlabel("Step", fontsize=12)
ax1.set_ylabel("Test Loss", color="tab:blue", fontsize=12)
ax1.plot(
    history["step"],
    history["test_loss"],
    color="tab:blue",
    alpha=0.4,
    linewidth=1.5,
    linestyle="--",
)
ax1.scatter(
    [history["step"][i] for i in sgd_indices],
    [history["test_loss"][i] for i in sgd_indices],
    color="tab:blue",
    marker="o",
    s=70,
    zorder=4,
    label="SGD (Loss)",
)
ax1.scatter(
    [history["step"][i] for i in gro_indices],
    [history["test_loss"][i] for i in gro_indices],
    color="tab:blue",
    marker="*",
    s=250,
    zorder=5,
    edgecolors="white",
    linewidths=0.5,
    label="Growth (Loss)",
)
ax1.tick_params(axis="y", labelcolor="tab:blue")

# --- Right y-axis: Number of Parameters ---
ax2 = ax1.twinx()
ax2.set_ylabel("Number of Parameters", color="tab:orange", fontsize=12)
ax2.plot(
    history["step"],
    history["num_params"],
    color="tab:orange",
    alpha=0.4,
    linewidth=1.5,
    linestyle="--",
)
ax2.scatter(
    [history["step"][i] for i in sgd_indices],
    [history["num_params"][i] for i in sgd_indices],
    color="tab:orange",
    marker="o",
    s=70,
    zorder=4,
    label="SGD (Params)",
)
ax2.scatter(
    [history["step"][i] for i in gro_indices],
    [history["num_params"][i] for i in gro_indices],
    color="tab:orange",
    marker="*",
    s=250,
    zorder=5,
    edgecolors="white",
    linewidths=0.5,
    label="Growth (Params)",
)
ax2.tick_params(axis="y", labelcolor="tab:orange")

# Mark growth events with vertical dotted lines
for i, idx in enumerate(gro_indices):
    ax1.axvline(
        x=history["step"][idx],
        color="gray",
        linestyle=":",
        linewidth=1.2,
        alpha=0.7,
        label="Growth event" if i == 0 else None,
    )

# Combined legend
lines1, labels1 = ax1.get_legend_handles_labels()
lines2, labels2 = ax2.get_legend_handles_labels()
ax1.legend(
    lines1 + lines2,
    labels1 + labels2,
    loc="upper right",
    framealpha=0.9,
    fontsize=10,
)

plt.title(
    "GrowingGraphNetwork — Test Loss and Capacity Evolution",
    fontsize=14,
    fontweight="bold",
    pad=12,
)
ax1.grid(axis="x", linestyle="--", alpha=0.3)
fig.tight_layout()
plt.show()
print()

GrowingGraphNetwork — Test Loss and Capacity Evolution

Total running time of the script: (1 minutes 0.527 seconds)

Gallery generated by Sphinx-Gallery
